CJX 90hp

•For engine under 90hp
•New tiltable helm included
•Standard wheel turns : 5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 16cc
Steering cylinder	Cylinder for small engine under 90HP
Accessories	Hydraulic Hose 1/4“, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

90HP

CJX 150hp

•For engine under 150hp
•New tiltable helm included
•Standard wheel turns : 5.5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 18cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

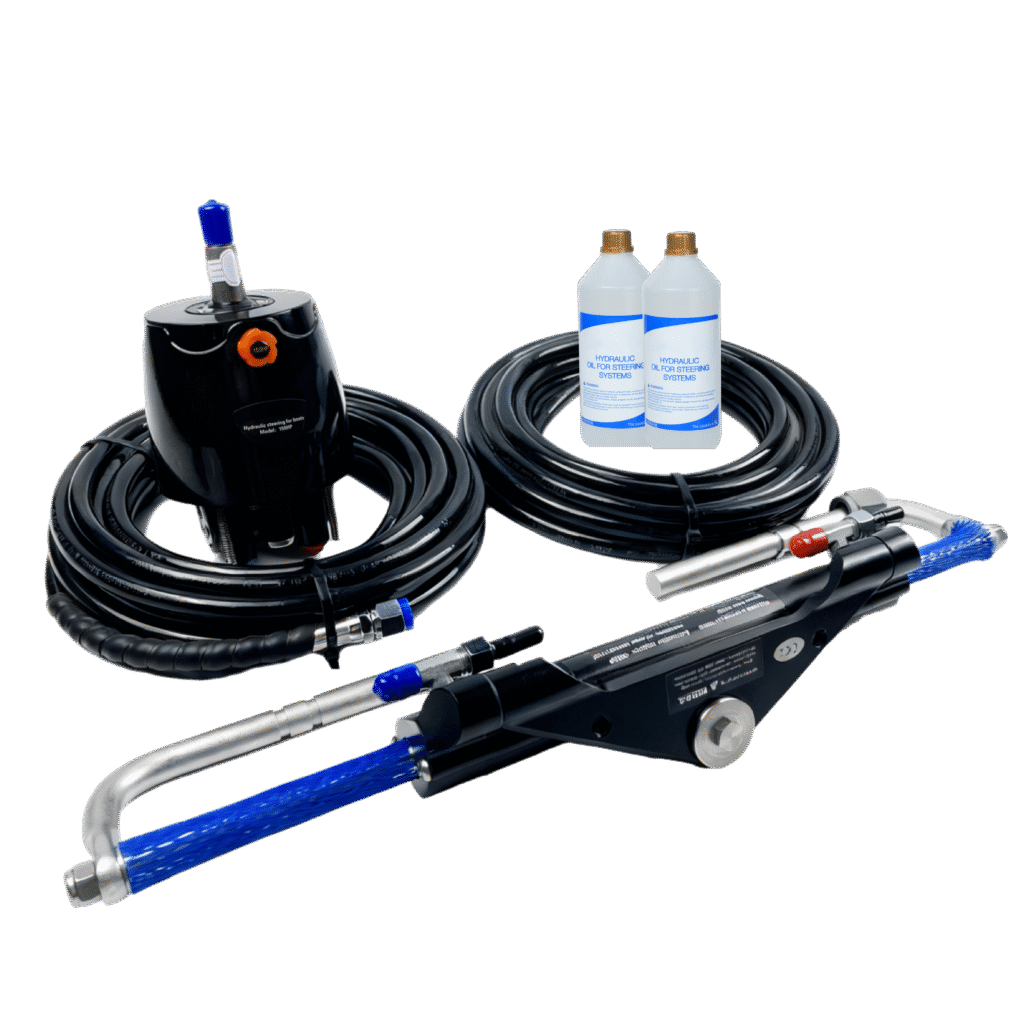

150HP方

CJX 200hp

•For engine under 200hp
•New tiltable helm included
•Standard wheel turns : 5.5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 18cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

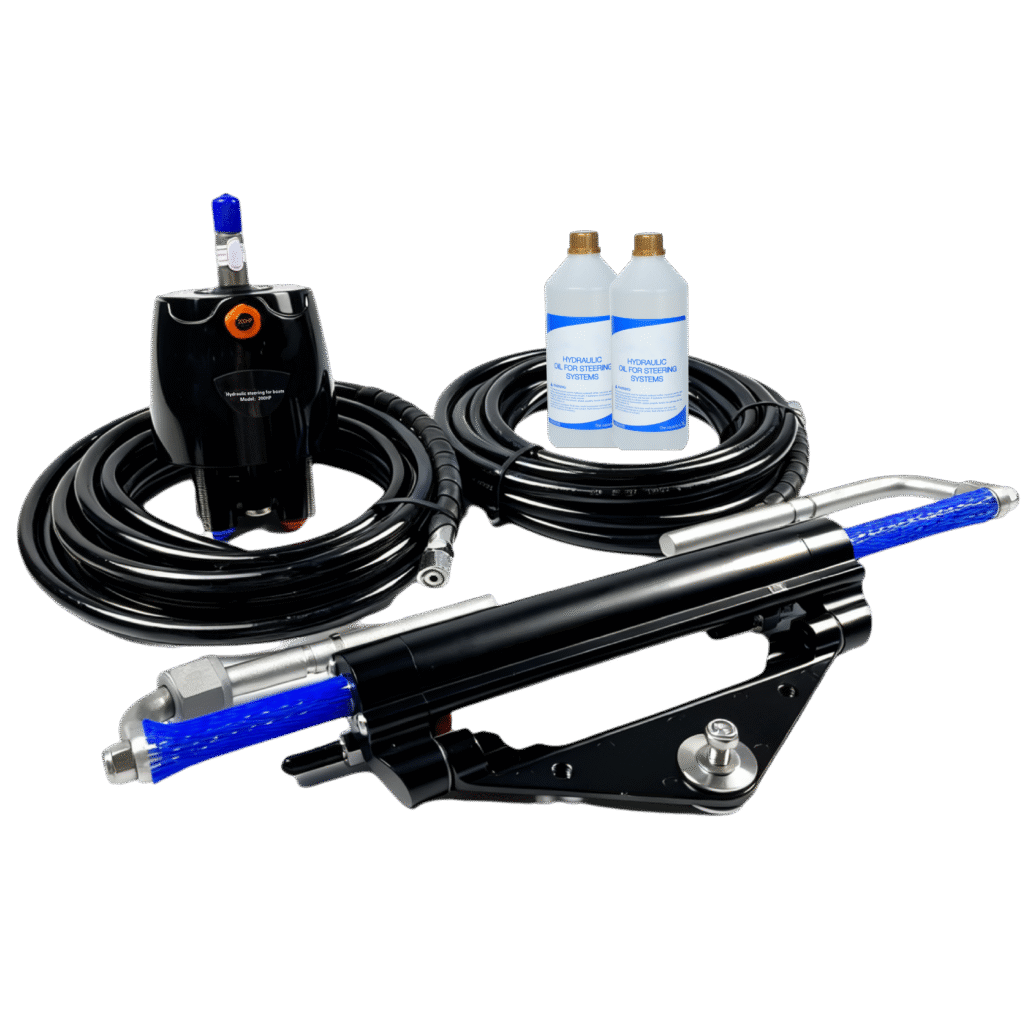

200HP方

CJX 300hp-A

•For engine under 300hp
•New tiltable helm included
•Standard wheel turns : 7±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 20cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

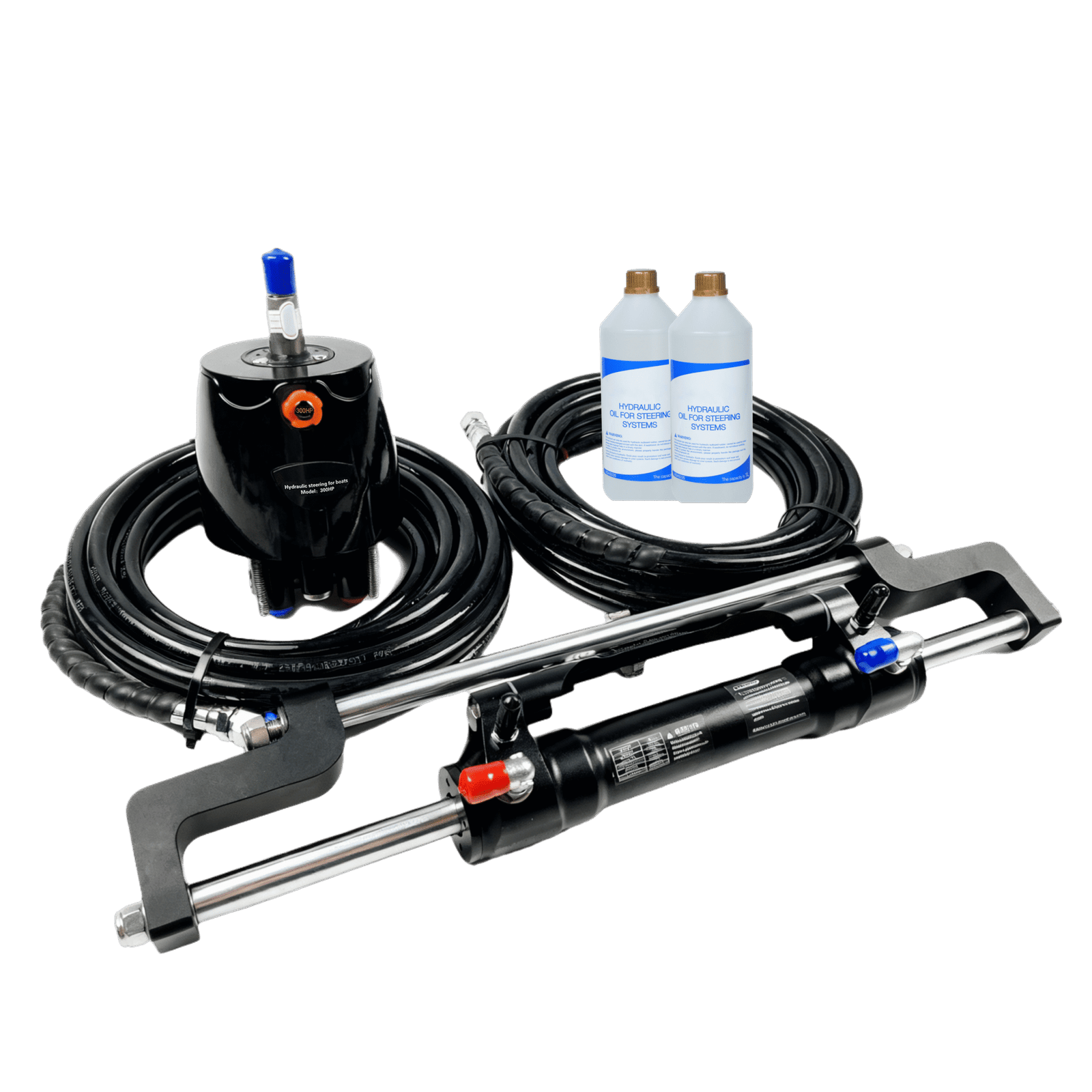

300HP方（A）

CJX 300hp-b

•For engine under 300hp
•New tiltable helm included
•Standard wheel turns : 7±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 20cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

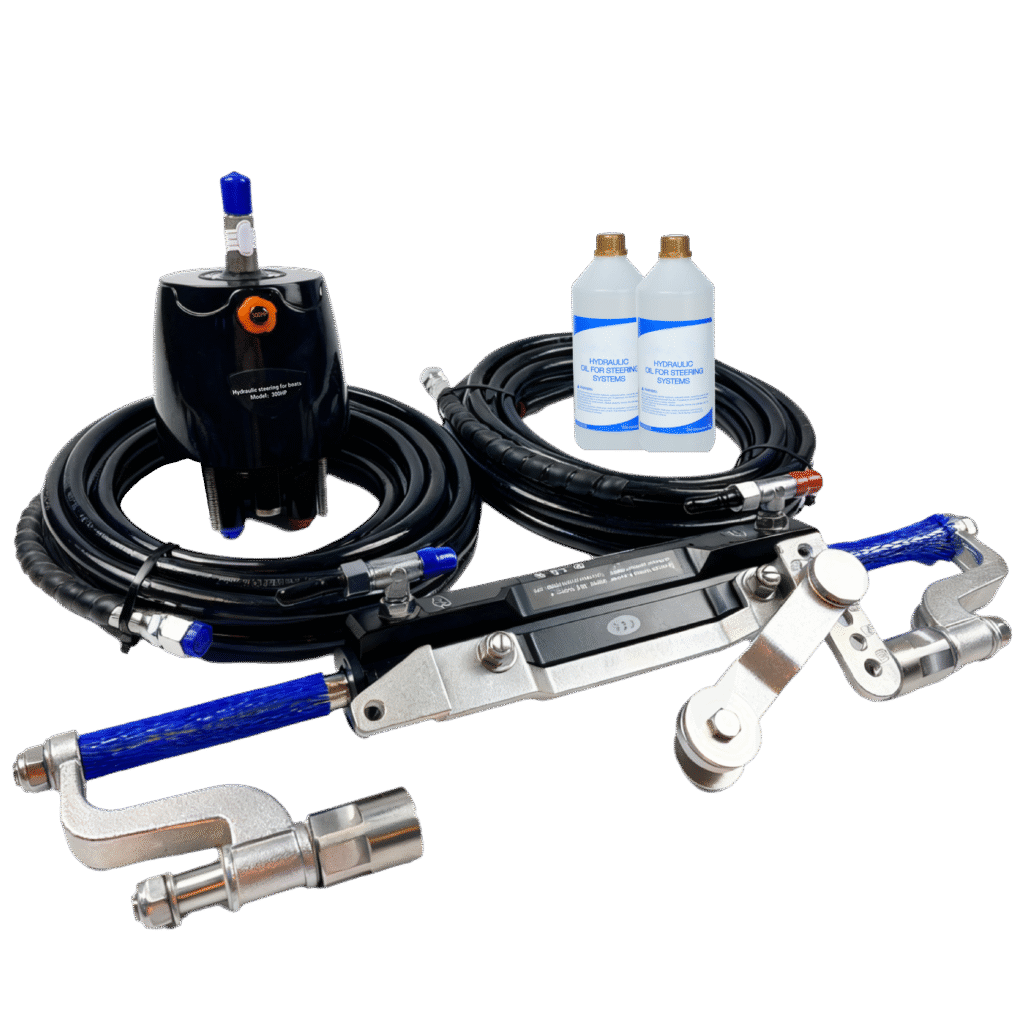

300HP方（B）

CJX 350hp

•For engine under 350hp
•New tiltable helm included
•Standard wheel turns : 6.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 22cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

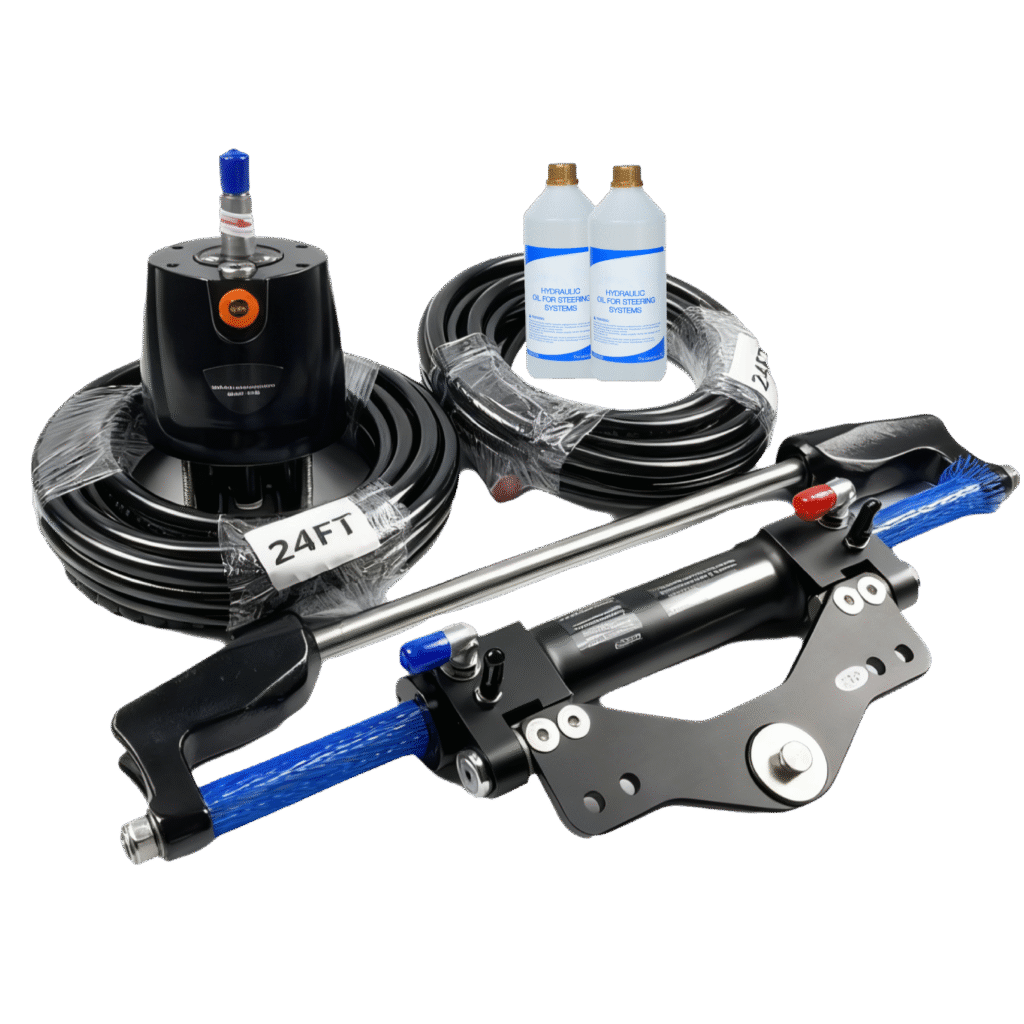

350HP方

CJX 700hp

•For engine under 350hp
•New tiltable helm included
•Standard wheel turns : 6.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 25cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

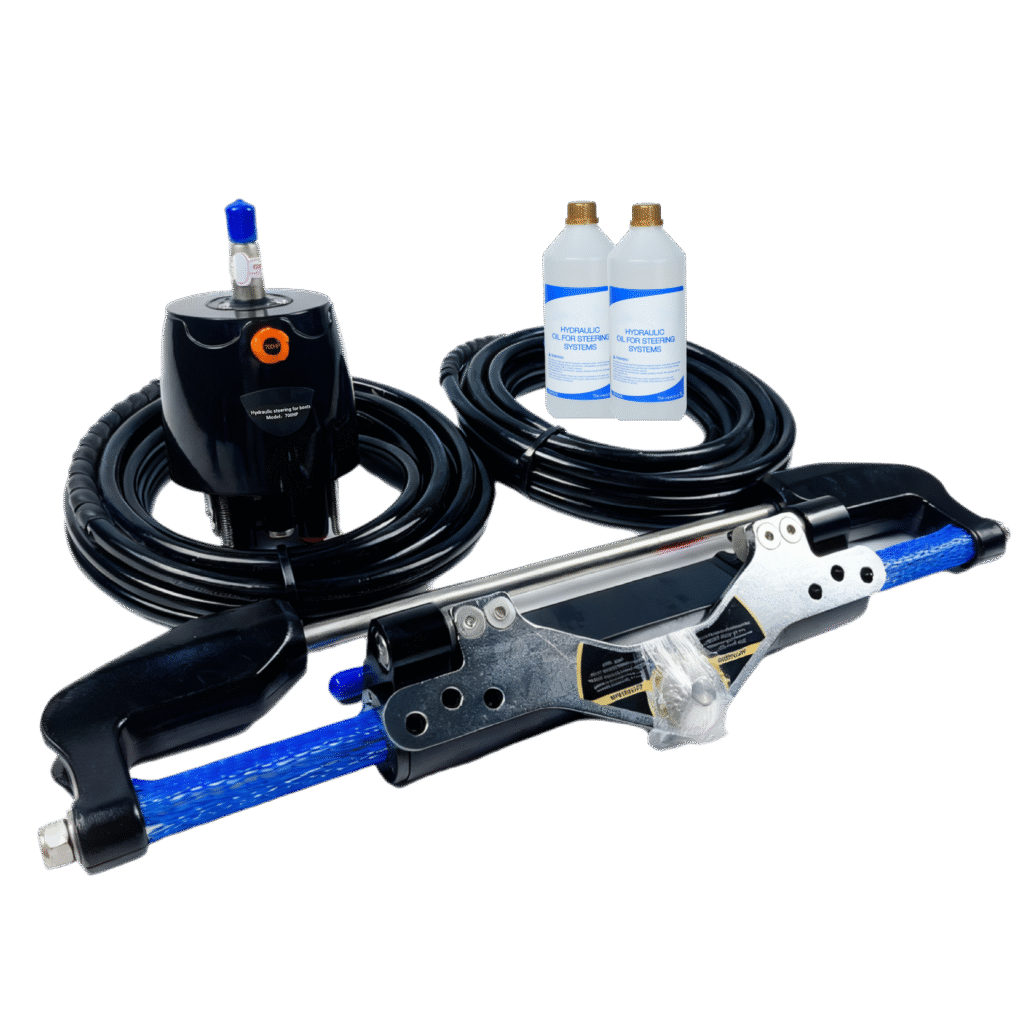

700HP方

CJX 100hp-D

•For engine under 100hp
•New tiltable helm included
•Standard wheel turns : 5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 16cc
Steering cylinder	Cylinder for small engine under 90HP
Accessories	Hydraulic Hose 1/4“, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

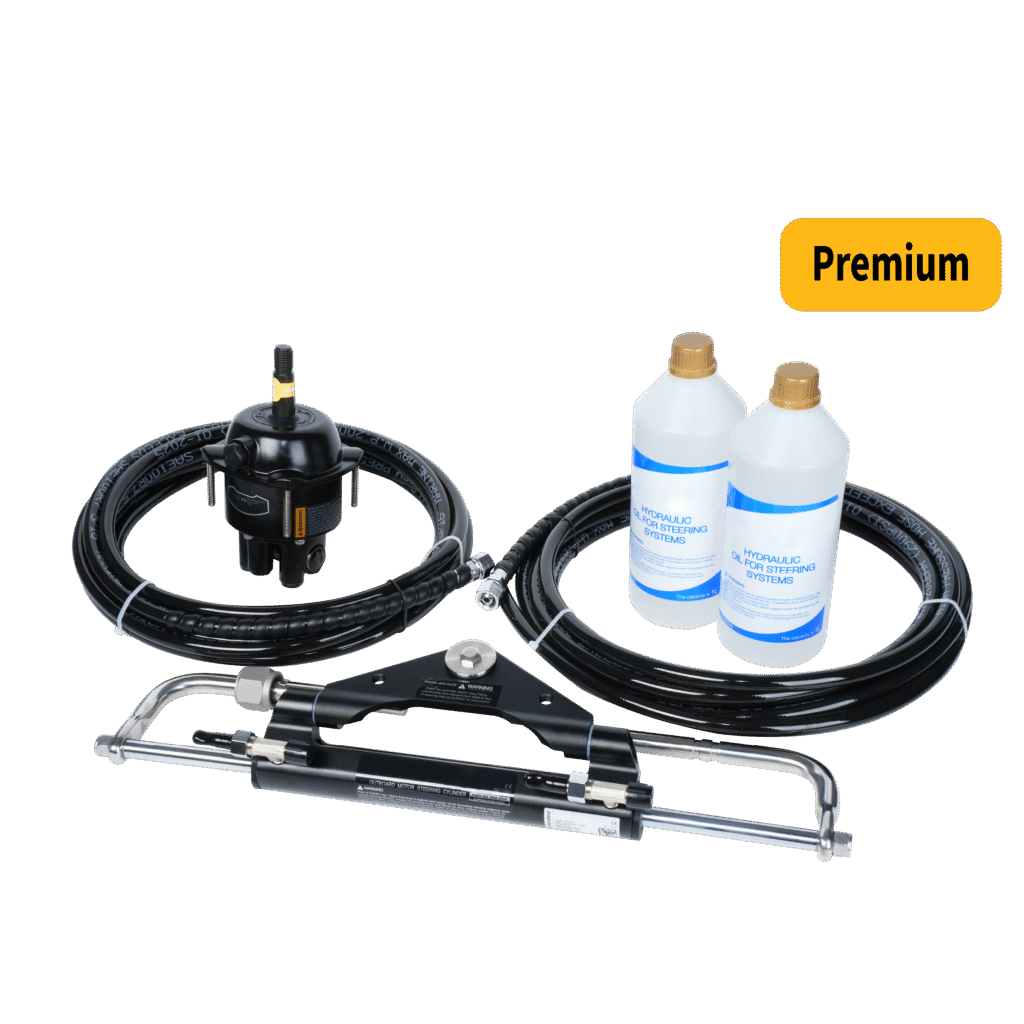

100HP

CJX 150hp-D

•For engine under 150hp
•New tiltable helm included
•Standard wheel turns : 5.5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 18cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

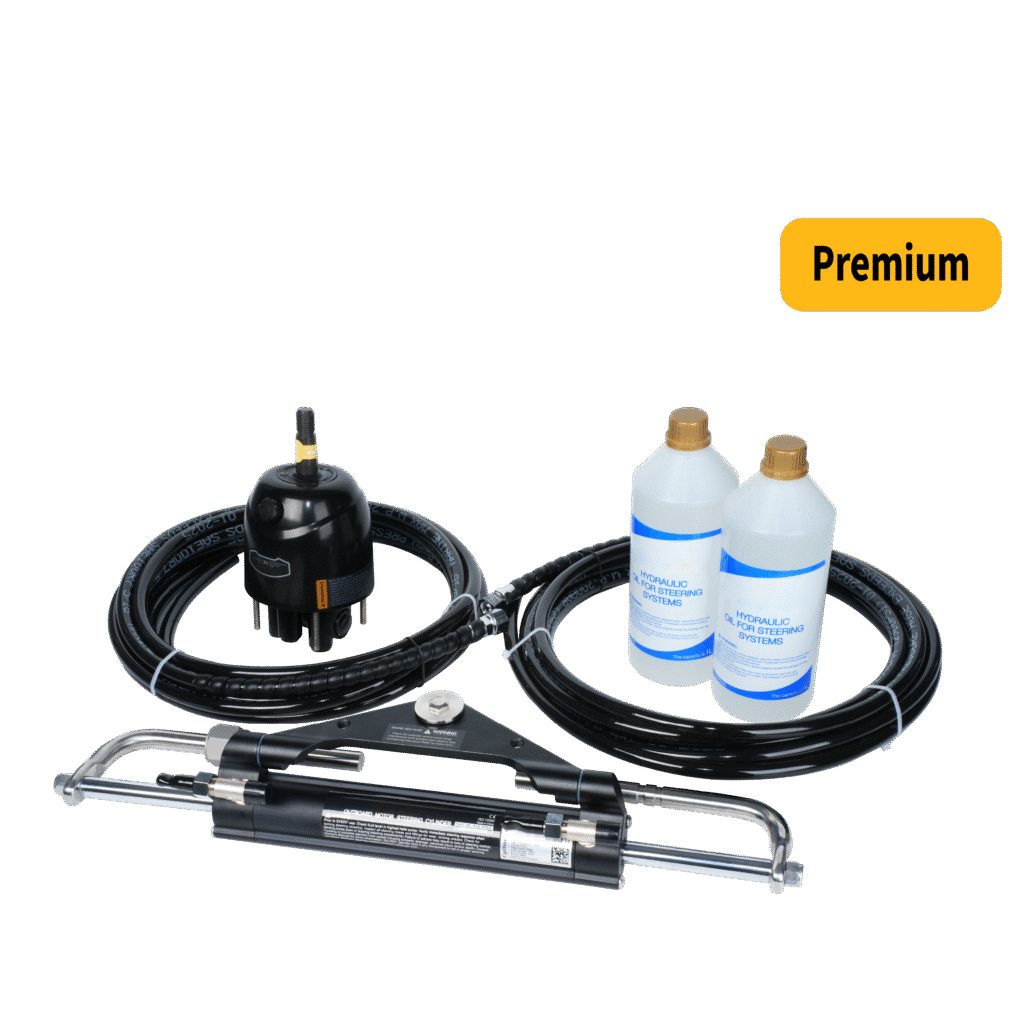

150HP

CJX 200hp-D

•For engine under 200hp
•New tiltable helm included
•Standard wheel turns : 5.5±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 18cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

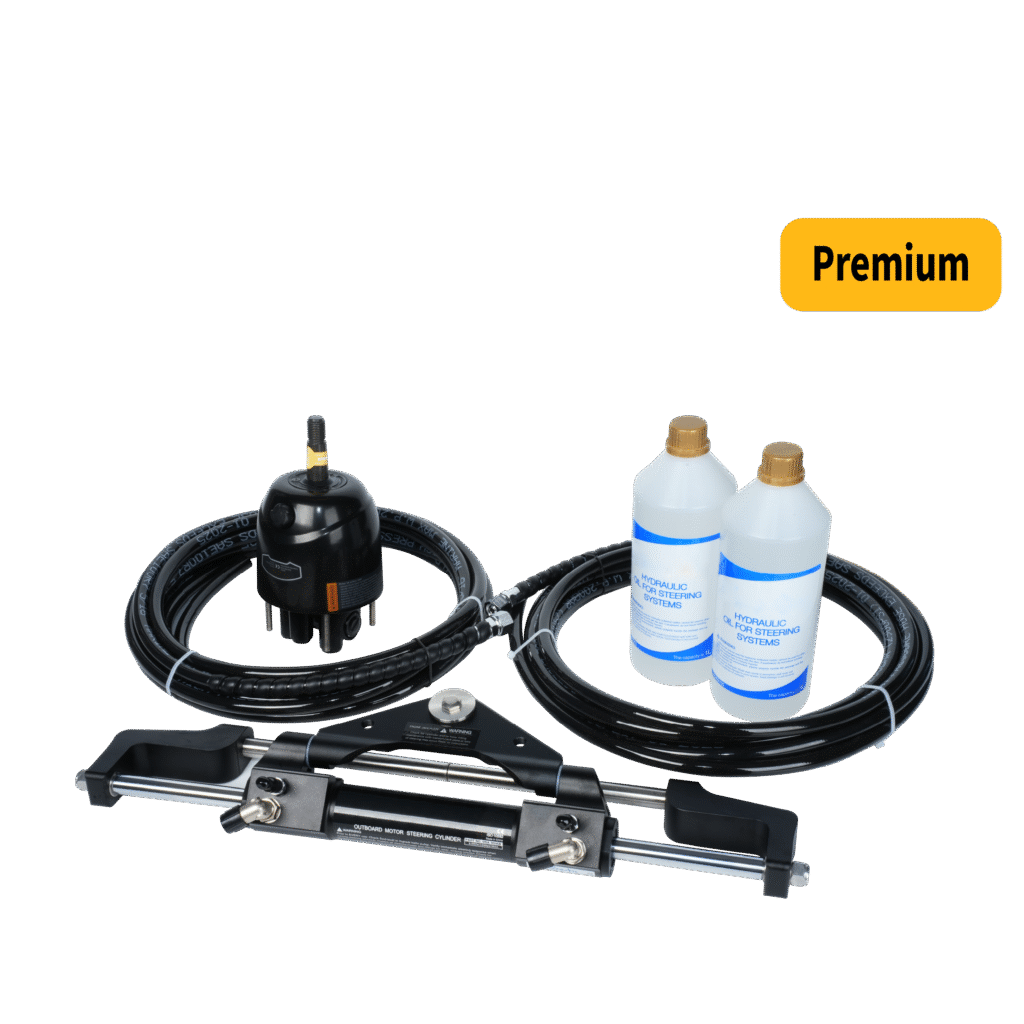

200HP

CJX 300hp-D

•For engine under 300hp
•New tiltable helm included
•Standard wheel turns : 7±0.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 20cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

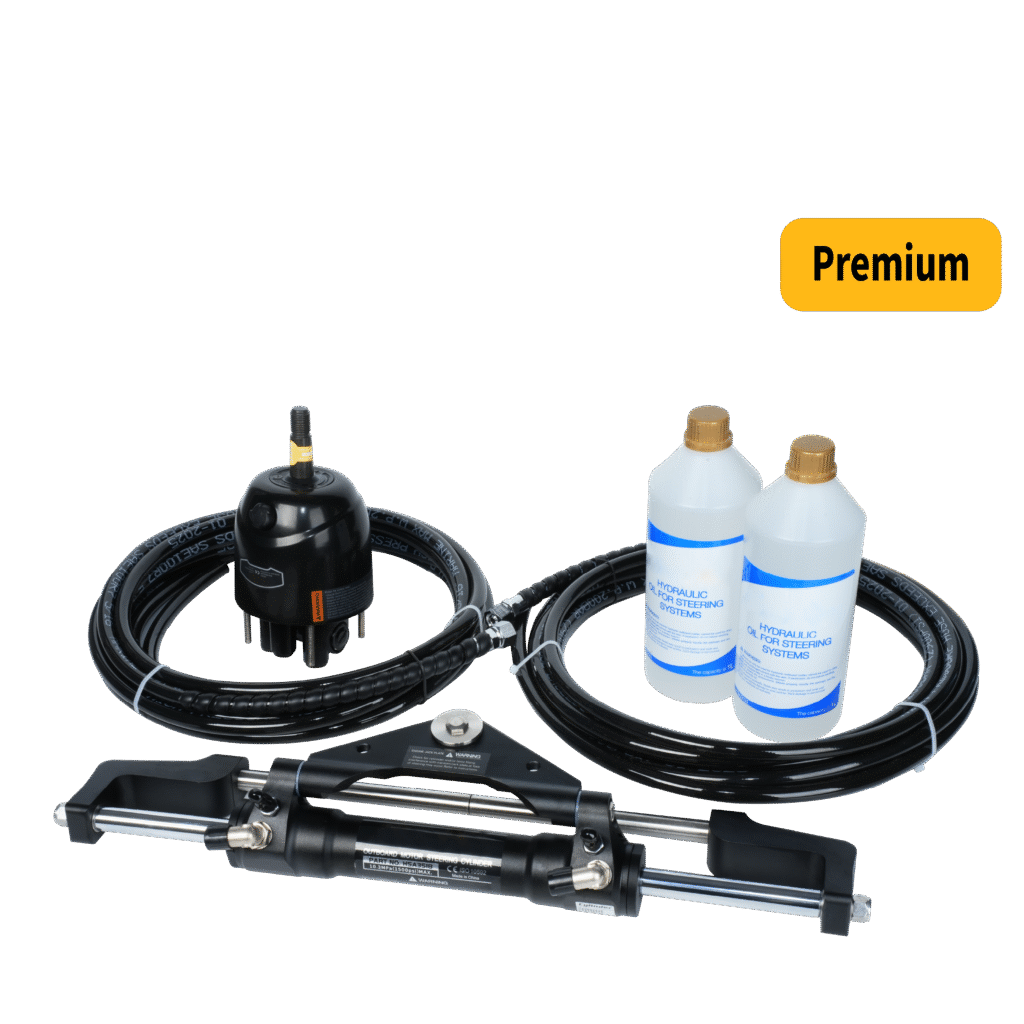

300HP

CJX 350hp-D

•For engine under 350hp
•New tiltable helm included
•Standard wheel turns : 6.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 22cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

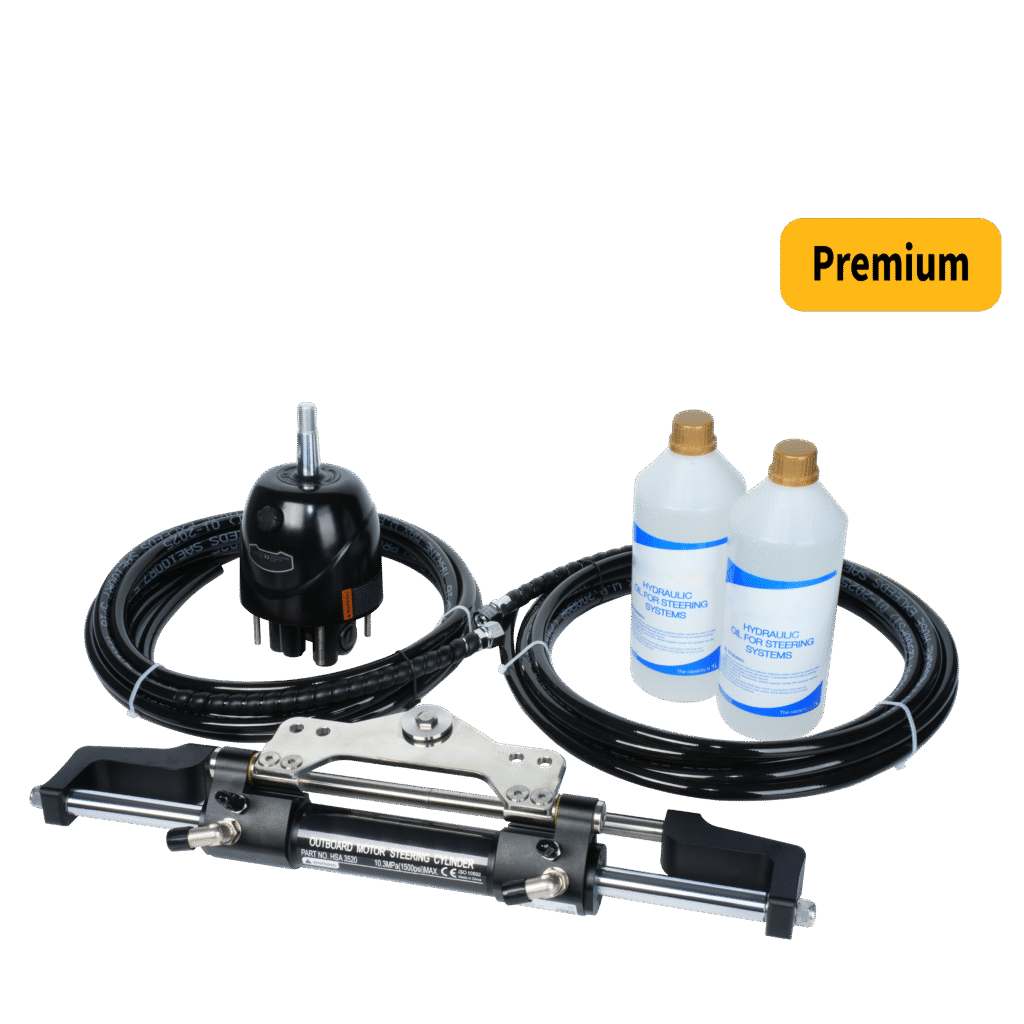

350HP

CJX 700hp-D

•For engine under 350hp
•New tiltable helm included
•Standard wheel turns : 6.5 lock to lock

Components	Description
steering pump	Front Mount Helm pump 25cc
Steering cylinder	Front mount Outboard Cylinder
Accessories	Hydraulic Hose 5/16”, 7 meter x 2 pcs
oil	Hydraulic oil 1 liter x 2 bottles. ISO VG15
other	Basic components

Note
* For bigger or smaller helm pump, Consult with your Customer Manager.
**You can change the hose length or add bulkhead mounting kit.

700HP

CJX-PTO7.4GPM

•Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

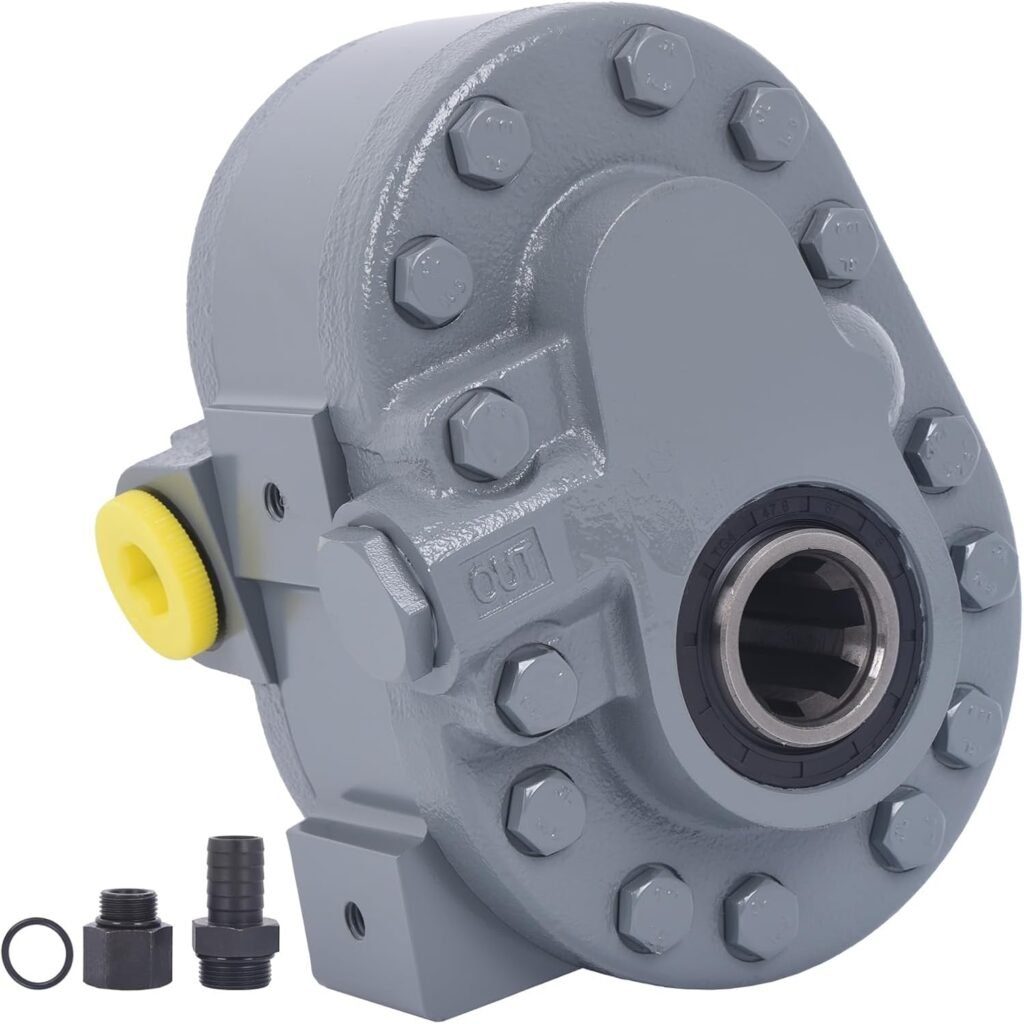

61-bujfPbhL._AC_SL1500_

Parameter / Component	Specification
Max. Flow Rate	7.4 GPM ±10% (28 LPM ±10%)
Max. Pressure	2500 PSI ±10% (17 MPa ±10%)
Max. Speed	540 RPM ±10%
Volumetric Efficiency	93%
Matched Motor Power / Recommended Motor Power	15 KW ±10%
Inlet Port Size	SAE 16
Outlet Port Size	SAE 12
Noise Level	≤ 75 dB
Main Material	6061-T5 Aluminum Alloy and HT200 Cast Iron
Net Weight	15.5 kg ±3% (including all accessories)
Overall Dimensions / Product Dimensions	LWH=225176133 mm
Accessories / Attachments	1. Connectors × 2 2. Sealing Ring × 1
Gear Pump Output Shaft	Shaft Extension:1.38 inch Shaft Diameter:0.5 inch Material:40Cr
Gear	Number of Teeth (z):14 Module (m):6.35 Material:20Cr Hardness:45 HRC

CJX-PTO11GPM

•Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

61-bujfPbhL._AC_SL1500_

Parameter / Component	Specification
Max. Flow Rate	11GPM±10% (28LPM±10% )
Max. Pressure	2500PSI±10%（17MPa±10%）
Max. Speed	540 RPM ±10%
Volumetric Efficiency	93%
Matched Motor Power / Recommended Motor Power	15 KW ±10%
Inlet Port Size	SAE 16
Outlet Port Size	SAE 12
Noise Level	≤ 75 dB
Main Material	6061-T5 Aluminum Alloy and HT200 Cast Iron
Net Weight	Net weight: 16.5kg ±3% (including all accessories)
Overall Dimensions / Product Dimensions	LWH=225176133 mm
Accessories / Attachments	1. Connectors × 2 2. Sealing Ring × 1
Gear Pump Output Shaft	Shaft extension: 1.38″ Shaft diameter: 1/2″ Material: 40Cr
Gear	Number of teeth: z = 14 Module: m = 6.35 Material: 20Cr Hardness: 45 HRC

CJX-PTO16.6GPM

•Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

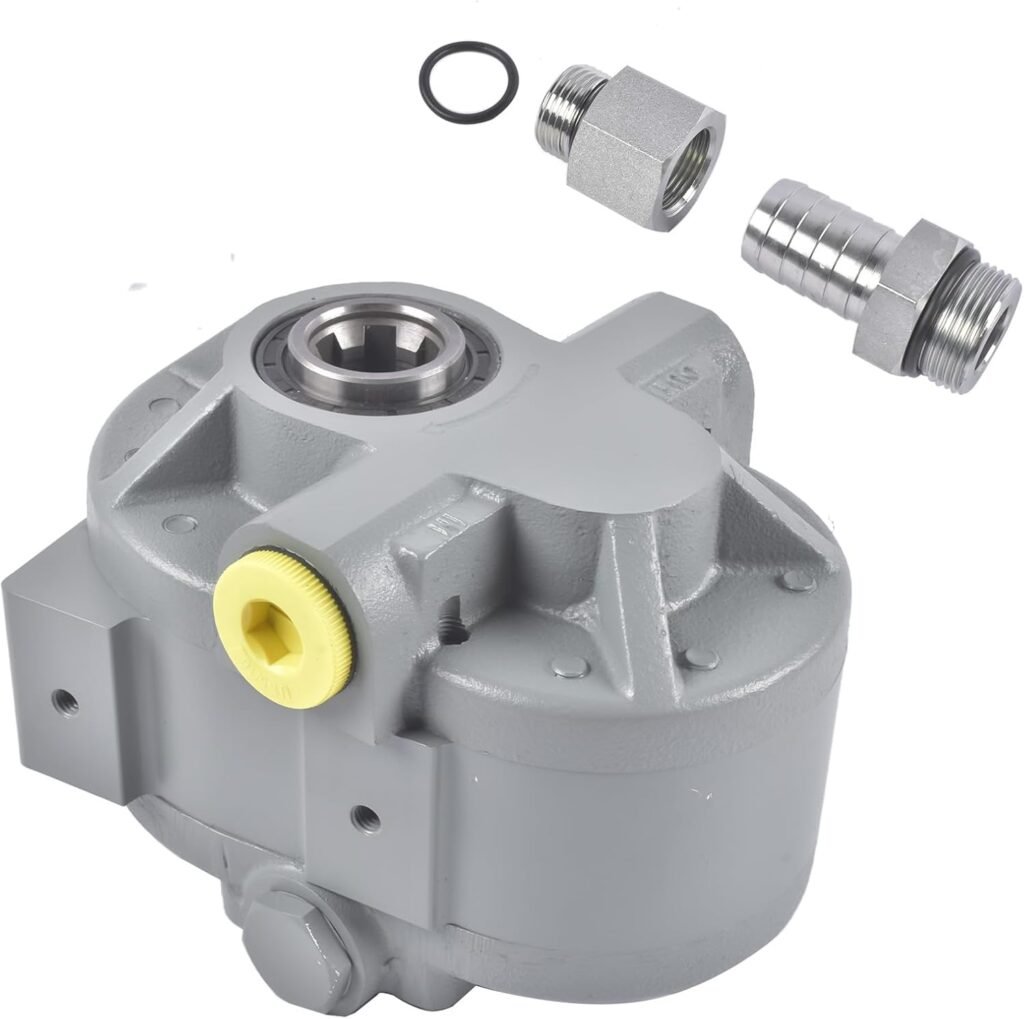

61U8t+1sasL._AC_SL1500_

Parameter / Component	Specification
Max. Flow Rate	16.6GPM±10% (62LPM±10% )
Max. Pressure	2500 PSI ±10% (17 MPa ±10%)
Max. Speed	540 RPM ±10%
Volumetric Efficiency	93%
Matched Motor Power / Recommended Motor Power	22KW±10%
Inlet Port Size	SAE 16
Outlet Port Size	SAE 12
Noise Level	≤ 75 dB
Main Material	6061-T5 Aluminum Alloy and HT200 Cast Iron
Net Weight	Net weight: 17.5kg ±3% (including all accessories)
Overall Dimensions / Product Dimensions	LWH=225176152 mm
Accessories / Attachments	1. Connectors × 2 2. Sealing Ring × 1
Gear Pump Output Shaft	Shaft extension: 1.5″ Shaft diameter: 1/2″ Material: 40Cr
Gear	Number of teeth: z = 14 Module: m = 6.35 Material: 20Cr Hardness: 45 HRC

CJX-PTO22.0GPM

•Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

61U8t+1sasL._AC_SL1500_

Parameter / Component	Specification
Max. Flow Rate	21.2GPM±10% (80LPM±10% )
Max. Pressure	2500 PSI ±10% (17 MPa ±10%)
Max. Speed	540 RPM ±10%
Volumetric Efficiency	93%
Matched Motor Power / Recommended Motor Power	30KW±10%
Inlet Port Size	SAE 16
Outlet Port Size	SAE 12
Noise Level	≤ 75 dB
Main Material	6061-T5 Aluminum Alloy and HT200 Cast Iron
Net Weight	18.5kg ±3% (including all accessories)
Overall Dimensions / Product Dimensions	LWH=225176161 mm
Accessories / Attachments	1. Connectors × 2 2. Sealing Ring × 1
Gear Pump Output Shaft	Shaft extension: 1.5″ Shaft diameter: 1/2″ Material: 40Cr
Gear	Number of teeth: z = 14 Module: m = 6.35 Material: 20Cr Hardness: 45 HRC

Hydraulic Log Splitter Pump

•Not Limited to Wood Splitting: Our 2-stage hydraulic pump is also perfect for powering log splitters, presses, machine tools, and snowplow hydraulic systems. Its outstanding compatibility extends to many OEM manufacturers, including Speeco, Huskee, Champion, and more. When you need reliable power for various applications, our hydraulic pump has got you covered.

Model	Flow Rate (GPM)	Pressure (PSI)	Shaft Diameter	Certification
CJX-PMJ11	11	3000	1.38″	1/2″
CJX-PMJ13	13	3000	1.38″	1/2″
CJX-PMJ16	16	4000	1.5″	1/2″
CJX-PMJ22	22	4000	1.5″	1/2″

Note
* Safety / Certification Standards:CVSA, DOT, NACM, FMCSA
**Accessories:Supplied with wrench,Supplied with shaft sleeve

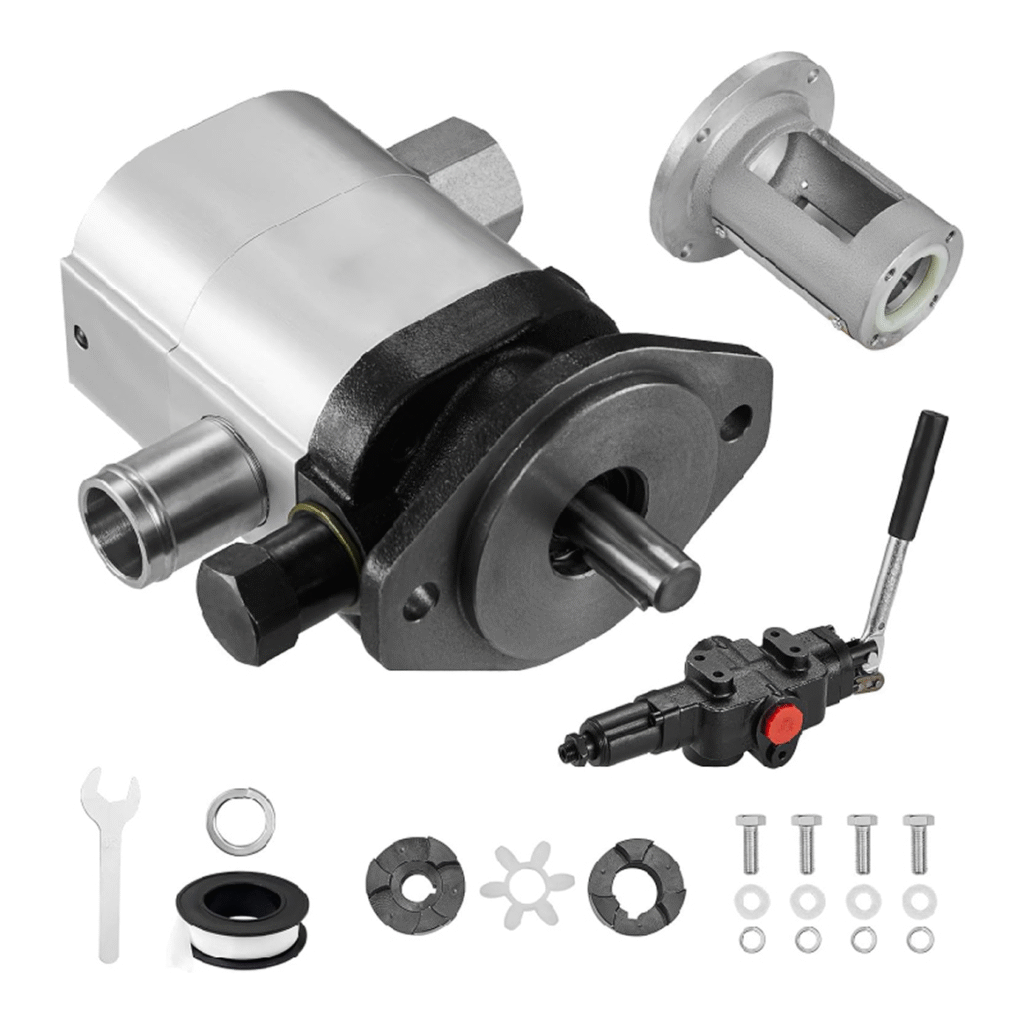

13PM劈木泵(12)

Rugged Aluminum Alloy Construction: Our hydraulic log splitter pump is constructed from high-quality aluminum alloy material, ensuring exceptional durability and corrosion resistance. It’s designed to withstand the toughest outdoor challenges, ensuring long-term reliability in any working environment.

Perfect Sealing, No Compromises: Our 2 stage log splitter pump is designed with a standardized 1-inch inlet, 1/2-inch NPT outlet, 1.5-inch shaft length and 1/2-inch shaft diameter, ensuring compatibility with a wide range of systems while maximizing sealing effectiveness and stability.
